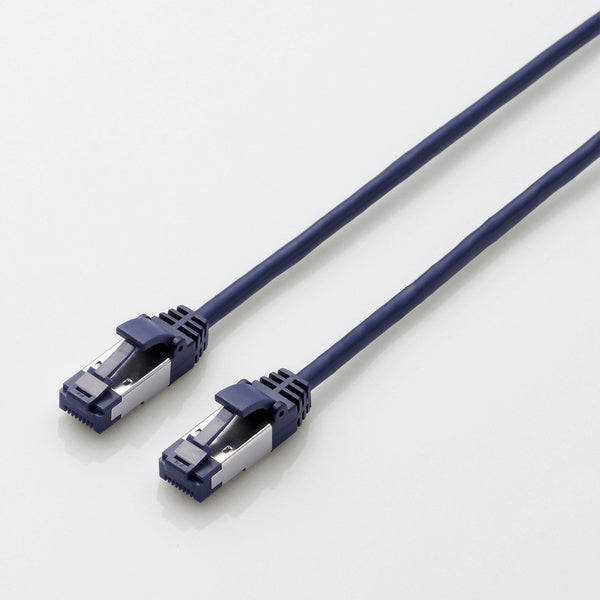

This slim 4.1mm CAT8 cable supports 40Gbps Ethernet (40GBASE-T) and up to 2000 MHz for fast, stable data transfer—even with multiple devices. Its double-shielded design minimizes interference, ideal for EMI-sensitive environments like server or medical rooms.

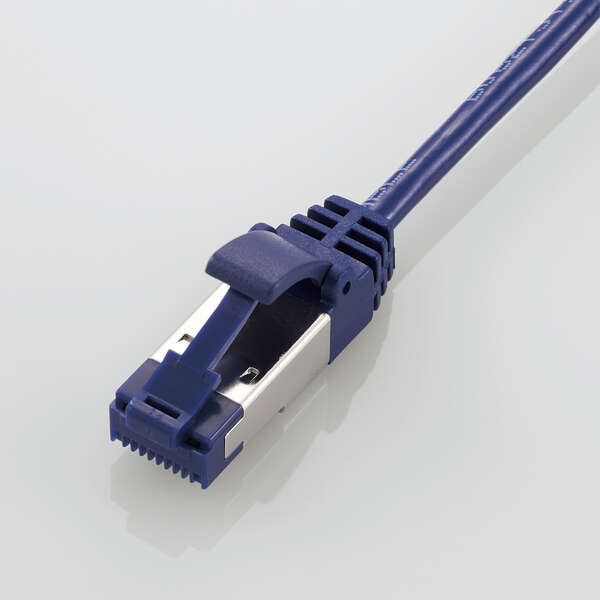

Built for durability, it features a soft, reinforced connector with a break-resistant clip, proven through 1,000 bend tests. The flexible twisted pair structure and flame-retardant jacket (JIS C 3005 compliant) enhance safety. It also meets TIA-568-C and EU RoHS standards for performance and environmental compliance.
Specifications:
- Color: Blue Metallic
- Interface: RJ-45 connector
- Environmental Considerations: EU RoHS Directive compliant (10 substances)
- Standard: Cat8 compliant (10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T/40GBASE-T)
- Transmission Speed: 40Gbps
- Transmission Bandwidth: 2000MHz

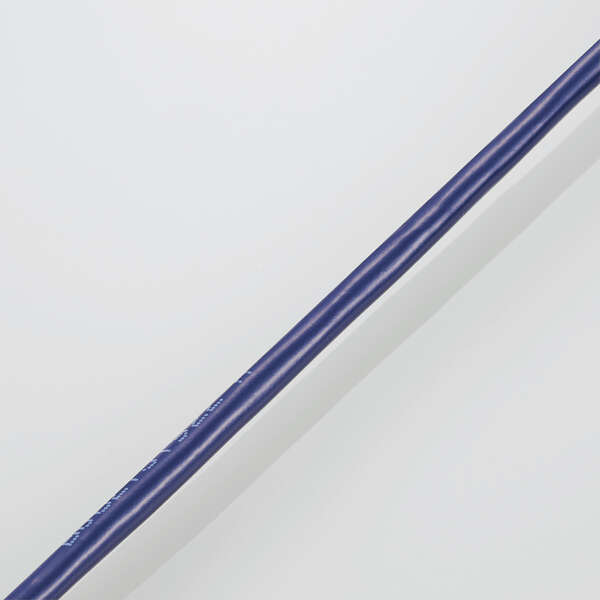

- Cable Thickness: Approx. 4.1mm
- No. of Cores: 8-Core
- Termination Method: Straight Termination
- Yori-to-core wire (Twisted Pair Cable): Yes
- Shield: Yes (ScTP/double foil tape shield specification)
- Cross Binding Material: No
- Outer Sheath Material: PVC
- With Length Mark: No
- Conductor Configuration: Yori Line (30AWG)
- Molded Connector: Yes
- Slim Connector: Yes
- Connector with Anti-Claw Cover: Yes
- Cable Winding Function: No
- Nail Breakable Connector: Yes
- PoE: No

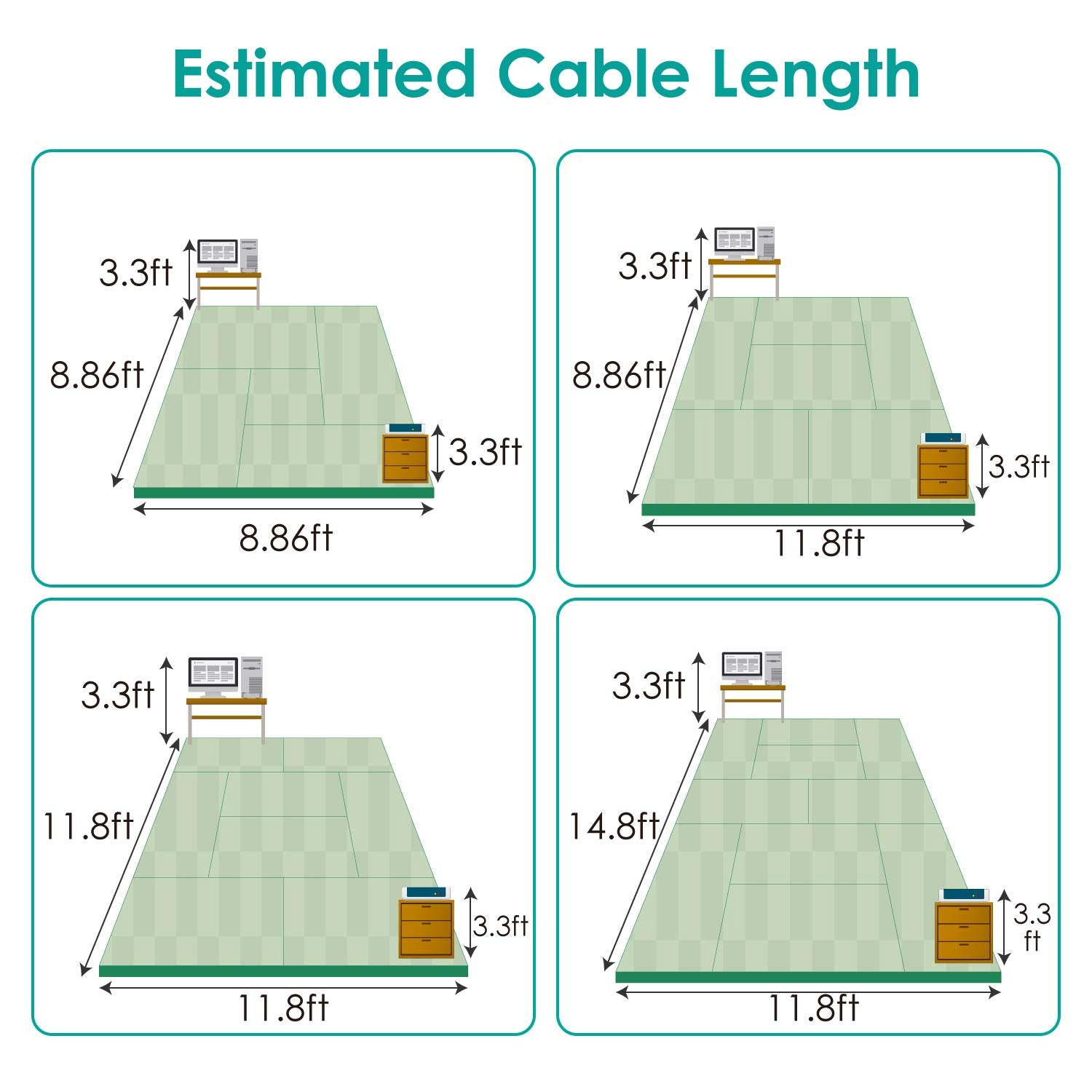

- Lengths: 1m (LD-OCTST/BM10), 2m (LD-OCTST/BM20), 3m (LD-OCTST/BM30), 5m (LD-OCTST/BM50)
