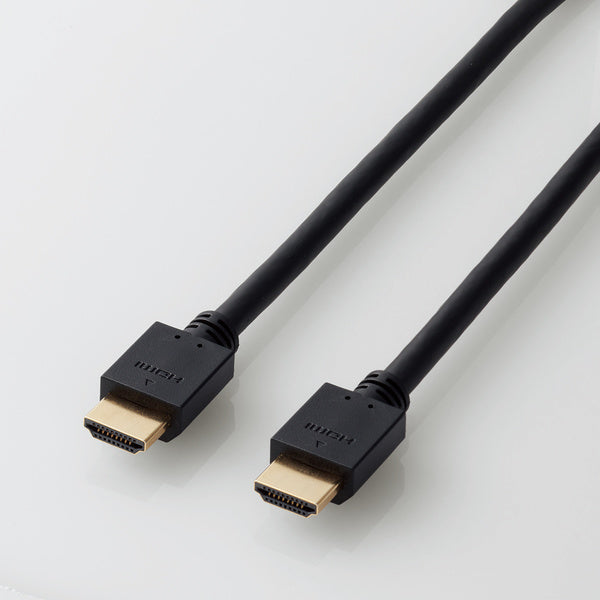

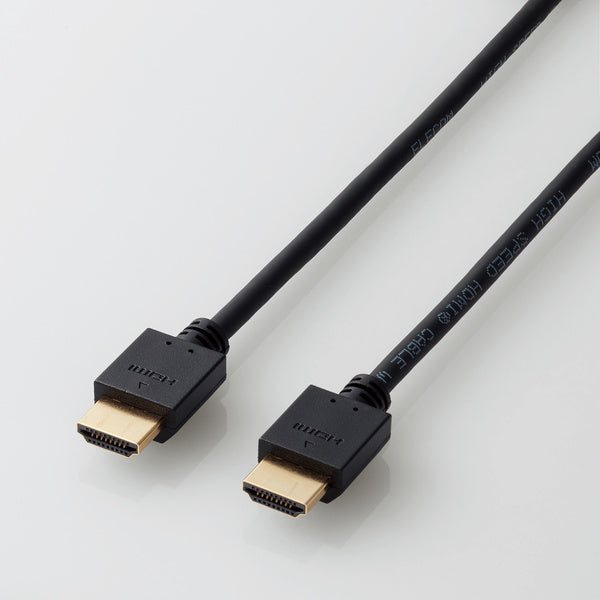

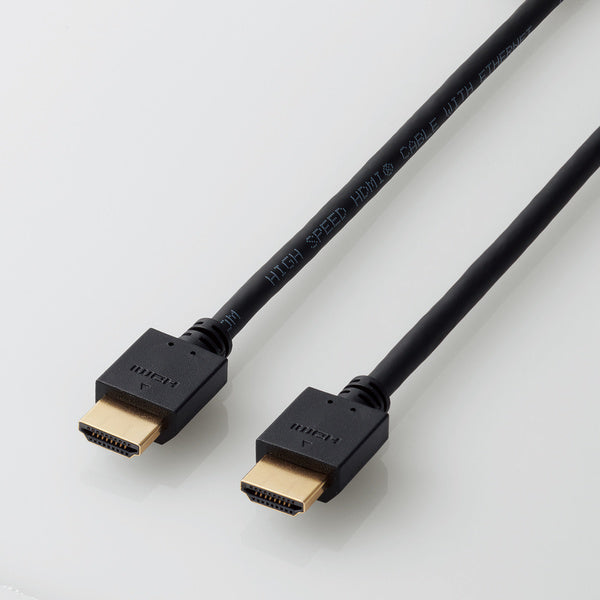

This high-speed HDMI cable supports up to 4K resolution at 30Hz and Full HD at 120Hz, delivering smooth, stable video and audio. With 10.2 Gbps bandwidth, it also enables ARC (Audio Return Channel) and HEC (HDMI Ethernet Channel) for two-way Ethernet up to 100Mbps.
Designed for tight spaces, it's 22% thinner with a compact trapezoidal connector (18 × 8.5 × 18.5 mm) for easy handling. Triple shielding, a metal shell, and gold-plated contacts ensure durability, minimize noise, and maintain signal integrity.
Specifications:
- Compatible Models: HDMI (Type A, 19-pin) side: LCD TVs, plasma TVs, projectors, etc. with HDMI input terminals, HDMI (Type A, 19-pin) side: AV equipment, game consoles, etc. with HDMI output terminals
- Standard: High Speed HDMI Cable with Ethernet (HDMI 1.4a) certification
- Connector Shape 1: HDMI plug (Type A, 19 pin)
- Connector Shape 2: HDMI plug (Type A, 19 pin)
- Cable Type: Standard
- Transmission Speed: 10.2Gbps
- Supported Resolutions: Up to 4K (3840×2160px) at 30Hz, Full HD (1920×1080px) at 120Hz
- Shielding Method: Wire rod part: Triple shield, Connector part: Metal shell shield
- Plug-Plated Specifications: Gold-plated pins and gold-plated plugs
- Cable Thickness: Approx. 4.5mm
- Environmental Considerations: EU RoHS Directive compliant (10 substances)

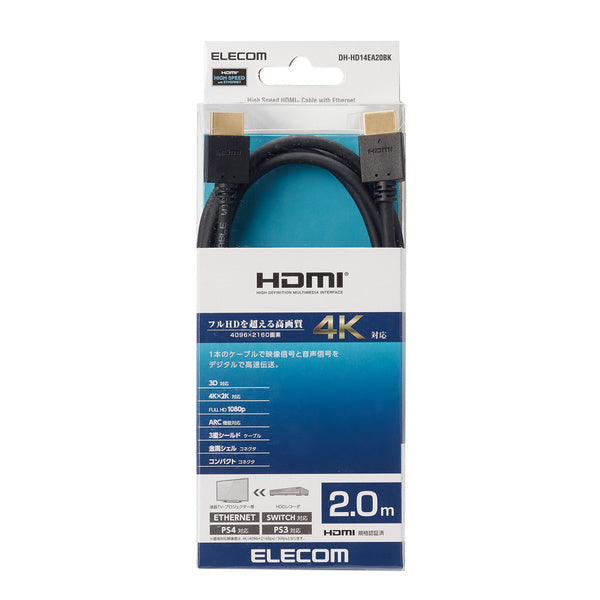

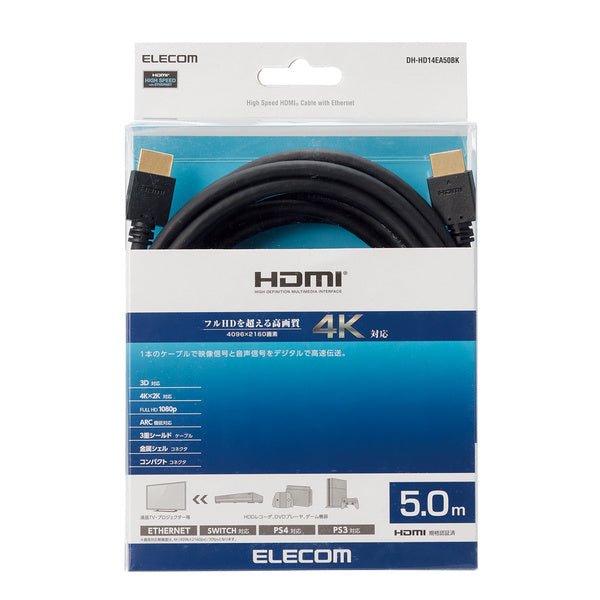

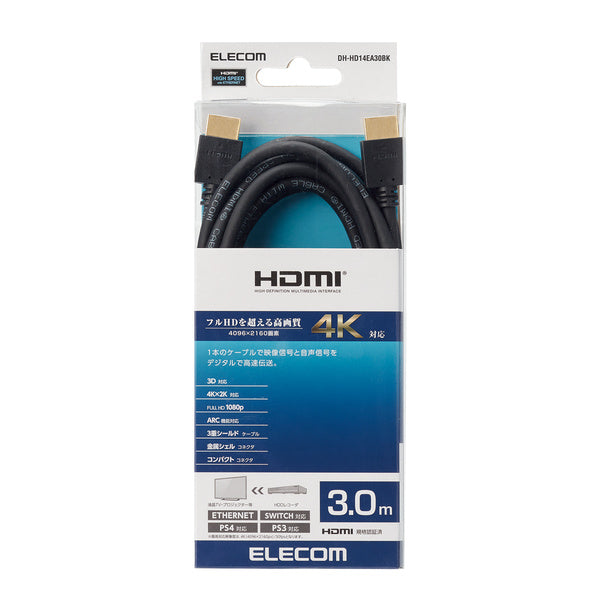

- Lengths: 1m (DH-HD14EA10BK), 2m (DH-HD14EA20BK), 3m (DH-HD14EA30BK), 5m (DH-HD14EA50BK)
